Brand: YILONG
Materials: Epoxy Resin + Fiberglass
Density: 1.8~2.0 g/cm³
Diameter: 4mm-300mm
Length: 1000mm
Temperature Index: 155℃
Thermal Class: F
Flammability: UL 94 V-0
Packaging: Pallet, Wooden Box
Description

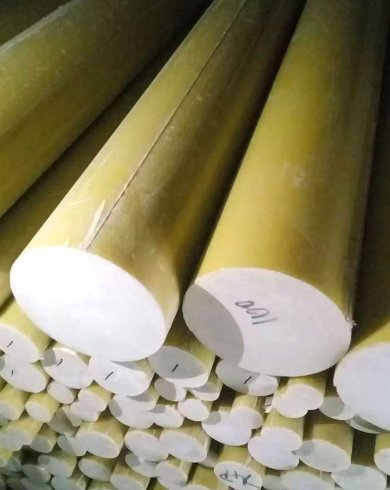

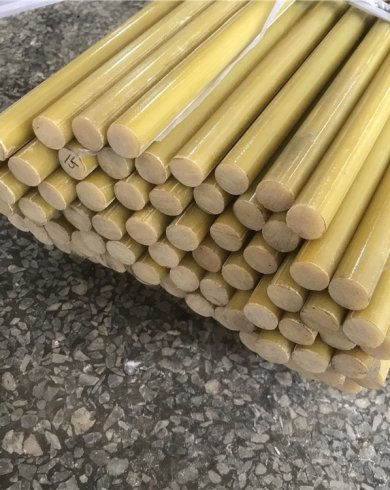

FR-5 Epoxy Glass Rods are manufactured from high-quality glass fiber impregnated with epoxy resin, providing exceptional mechanical strength, electrical insulation, and thermal resistance. Designed for demanding industrial applications, these rods can withstand high temperatures, mechanical stress, and harsh environments. With excellent dielectric properties, high dimensional stability, and resistance to moisture, chemicals, and corrosion, FR-5 rods deliver reliable performance in both electrical insulation and structural support applications.
Features
Excellent dielectric strength, ensuring reliable electrical insulation in high-voltage systems.
Superior mechanical strength, resistant to bending, breaking, and wear.
High thermal stability, performing reliably up to 155°C.
Excellent dimensional stability under temperature, humidity, and mechanical stress.
Strong resistance to moisture, chemicals, and corrosion for durability in harsh environments.
Suitable for both electrical insulation and structural support applications.
Long-lasting and reliable performance in industrial, automotive, and aerospace sectors.
Applications
Electrical insulation components in transformers, switchgear, and circuit boards.
Structural supports in industrial machinery and heavy-duty equipment.
High-temperature environments such as aerospace and automotive sectors.
Mechanical components subjected to stress, impact, or wear.
Industrial equipment requiring combined electrical insulation, mechanical strength, and durability.
Technical Data Sheet
| Epoxy Glass Cloth Laminated Rod | ||||||
| Testing Method GB/T 5132.2-2009 IEC 61212.2:2006 | ||||||
| Number | Items | Unit | EPGC41 G10 | EPGC42 G11 | EPGC43 FR4 | FR5 |
| 1 | Density | g/cm³ | 1.7 ~ 1.90 | 1.7 ~ 1.90 | 1.7 ~ 1.90 | 1.7 ~ 1.90 |
| 2 | water absorption | Mg/cm2 | 3 | 5 | 3 | 3 |
| 3 | Axial compression strength | MPa | ≥ 175 | ≥ 175 | ≥ 175 | ≥ 175 |
| 4 | Vertical layer bending strength | MPa | ≥ 220 | ≥ 220 | ≥ 220 | ≥ 220 |
| 5 | Tensile Strength | MPa | ≥ 300 | ≥ 300 | ≥ 300 | ≥ 300 |
| 6 | Insulation resistance after water immersion | Ω | ≥ 1.0 × 10^9 | ≥ 1.0 × 10^9 | ≥ 1.0 × 10^9 | ≥ 1.0 × 10^9 |
| 7 | Parallel layer to breakdown voltage at (90)℃ transformer oil | kV | ≥40 | ≥40 | ≥40 | ≥40 |
| 8 | Dielectric Constant | Hz | ≤5.5 | ≤5.5 | ≤5.5 | ≤5.5 |
| 9 | Temperature Index (TI) | - | ≤130 | ≤ 155 | ≤ 130 | ≤ 155 |
| 10 | Thermal Class | - | B | F | B | F |
| 11 | Flammabolity | UL 94 | - | - | V-0 | V-0 |
| Note 1: The "vertical layer bending strength" of EPGC42 type is the bending strength measured at 150 ℃ ± 3 ℃ after 1h of treatment at 150 ℃ ± 3 ℃, which shall not be less than 50% of the specified value. | ||||||
| Note 2: One of the requirements for 20s step-by-step boost test and 1min withstand voltage test for parallel layer to breakdown voltage in 90 ℃ transformer oil can be selected. | ||||||
| Note 3: The flammability test is mainly used to monitor the uniformity of laminate production, and the results so measured should not be regarded as a comprehensive indication of the potential fire hazard of these laminates under actual application conditions. | ||||||
