Brand: YILONG
Materials: Epoxy Resin + Fiberglass
Density: 1.8~2.0 g/cm³
Diameter: 4mm-300mm
Length: 1000mm
Temperature Index: 155℃
Thermal Class: F
Packaging: Pallet, Wooden Box
Description

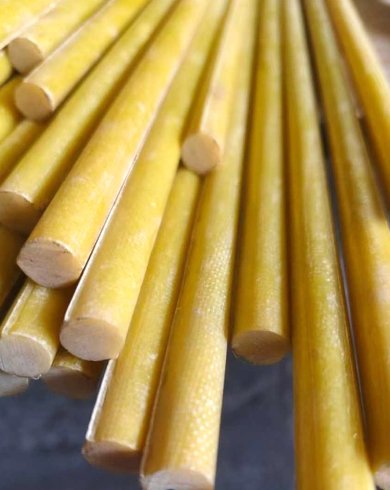

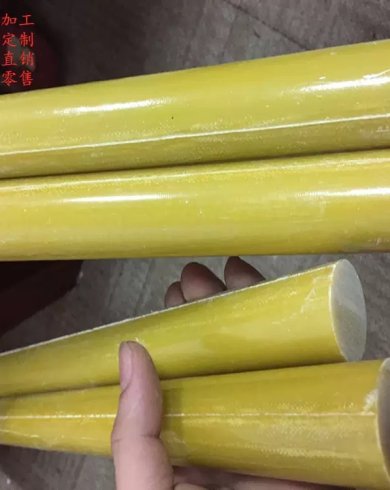

G-11 / EPGC42 Epoxy Glass Rods are manufactured from premium-grade glass fabric impregnated with epoxy resin, providing superior electrical and mechanical properties. They are designed for high-performance insulation applications that demand exceptional strength, reliability, and long-term durability. These rods maintain excellent dielectric strength, mechanical stability, and thermal performance, even under extreme voltage, temperature, and environmental conditions.
Features
Excellent dielectric strength, preventing electrical leakage in high-voltage applications.
High mechanical strength and rigidity, resistant to impact, wear, and mechanical stress.
Superior thermal stability, maintaining performance under extreme hot or cold conditions.
Good dimensional stability under humidity and environmental changes.
Excellent chemical and moisture resistance, ensuring long-term durability.
Reliable and robust performance for demanding electrical, industrial, and mechanical applications.
Applications
Electrical insulation components in transformers, switchgear, and high-voltage equipment.
Structural and mechanical supports in industrial machinery.
Components in motors and generators requiring high mechanical and thermal performance.
Applications where both electrical insulation and mechanical strength are critical.
Industrial and electrical environments exposed to mechanical stress, moisture, or chemicals.
Technical Data Sheet
| Epoxy Glass Cloth Laminated Rod | ||||||
| Testing Method GB/T 5132.2-2009 IEC 61212.2:2006 | ||||||
| Number | Items | Unit | EPGC41 G10 | EPGC42 G11 | EPGC43 FR4 | FR5 |
| 1 | Density | g/cm³ | 1.7 ~ 1.90 | 1.7 ~ 1.90 | 1.7 ~ 1.90 | 1.7 ~ 1.90 |
| 2 | water absorption | Mg/cm2 | 3 | 5 | 3 | 3 |
| 3 | Axial compression strength | MPa | ≥ 175 | ≥ 175 | ≥ 175 | ≥ 175 |
| 4 | Vertical layer bending strength | MPa | ≥ 220 | ≥ 220 | ≥ 220 | ≥ 220 |
| 5 | Tensile Strength | MPa | ≥ 300 | ≥ 300 | ≥ 300 | ≥ 300 |
| 6 | Insulation resistance after water immersion | Ω | ≥ 1.0 × 10^9 | ≥ 1.0 × 10^9 | ≥ 1.0 × 10^9 | ≥ 1.0 × 10^9 |
| 7 | Parallel layer to breakdown voltage at (90)℃ transformer oil | kV | ≥40 | ≥40 | ≥40 | ≥40 |
| 8 | Dielectric Constant | Hz | ≤5.5 | ≤5.5 | ≤5.5 | ≤5.5 |
| 9 | Temperature Index (TI) | - | ≤130 | ≤ 155 | ≤ 130 | ≤ 155 |
| 10 | Thermal Class | - | B | F | B | F |
| 11 | Flammabolity | UL 94 | - | - | V-0 | V-0 |
| Note 1: The "vertical layer bending strength" of EPGC42 type is the bending strength measured at 150 ℃ ± 3 ℃ after 1h of treatment at 150 ℃ ± 3 ℃, which shall not be less than 50% of the specified value. | ||||||
| Note 2: One of the requirements for 20s step-by-step boost test and 1min withstand voltage test for parallel layer to breakdown voltage in 90 ℃ transformer oil can be selected. | ||||||
| Note 3: The flammability test is mainly used to monitor the uniformity of laminate production, and the results so measured should not be regarded as a comprehensive indication of the potential fire hazard of these laminates under actual application conditions. | ||||||
