G-3 Glass Phenolic Laminate PFGC201 HGW2072 Insulation Sheet

Description

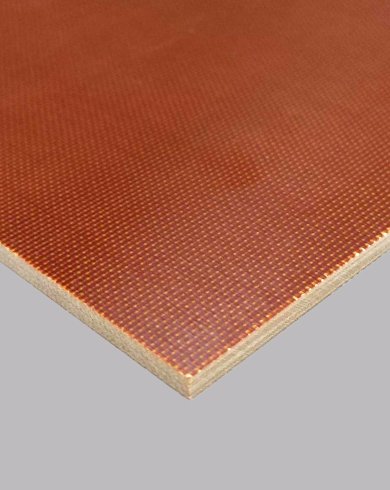

G-3 Glass Phenolic Laminate is manufactured from woven glass cloth bonded with high-temperature phenolic resin. It offers excellent flexural, compressive, and impact strength, along with reliable electrical insulation performance.

G-3 is designed for continuous service up to 350°F (175°C), maintaining stability in high-temperature environments, making it suitable for electrical and mechanical insulation applications.

Features

• Made from woven glass cloth and high-temperature phenolic resin

• Excellent flexural, compressive, and impact strength

• Continuous operating temperature up to 350°F (175°C)

• Good electrical insulation performance

• Stable mechanical properties at elevated temperatures

Applications

• Electrical insulation structural components

• Motor and transformer insulation parts

• High-temperature insulating panels and spacers

• Electrical equipment components exposed to heat

• Mechanical parts requiring thermal resistance and strength

Technical Data Sheet
