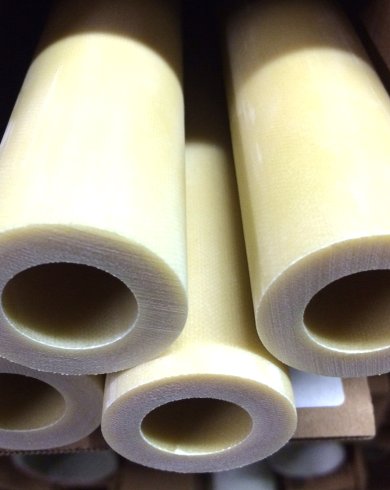

G-5 G-9 Glass Melamine Laminates for Electrical Insulation and Industrial Applications

Description

G-5 and G-9 glass melamine laminates are composite materials made from continuous filament glass cloth impregnated with a heat-resistant melamine resin binder. These laminates are hard, flame-resistant, and possess excellent electrical insulating properties even under wet or humid conditions.

G-5: An older designation largely replaced by G-9. It may still appear in older drawings or documentation but is fully interchangeable with G-9.

G-9: The modern standard, offering superior flame and arc resistance, mechanical strength, and dimensional stability.

Features

• High mechanical strength and structural integrity

• Excellent electrical insulation with strong dielectric properties

• Heat resistant, stable from -40°C to 130°C

• Chemical, corrosion, and oxidation resistant

• Long-lasting durability in industrial environments

Applications

• Electrical insulation in transformers, motors, and electrical connectors

• Structural components in industrial machinery

• Applications requiring high-strength, heat- and chemical-resistant insulation

• Environments exposed to mechanical stress, heat, and industrial chemicals
