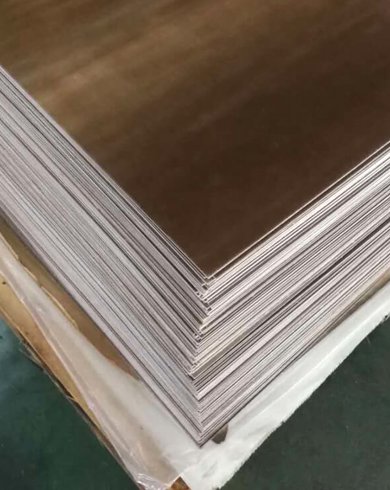

G5 G9 Melamine Glass Sheet MFGC201 HGW2272 Insulation Laminate

Description

G-5 and G-9 Composite laminate is a continuous filament glass cloth with heat resistant melamine resin binder. G9 glass melamine laminate is a very hard, flame resistant grade that has excellent arc resistance and electric strength properties even under Humid or wet conditions. G-5 and G-9 laminate sheet has high mechanical strength and machines well. This product also has good dimensional stability.

G-5 and G-9 are typically discussed together as one. Both materials consist of woven glass fabric and a melamine resin base. Both materials offer outstanding electrical properties in high humidity environments. Both materials have essentially the same mechanical properties.

The most significant difference is that the G9 offers improved resistance to the elements of the outdoors.  G9 can safely be substituted for G5.

Features

• Made from woven glass fabric and high-temperature melamine resin

• Excellent dielectric strength for high-voltage insulation

• High thermal stability for continuous operation in hot environments

• Superior mechanical strength: flexural, compressive, and impact resistance

• Low moisture absorption, stable in humid conditions

• Excellent arc resistance, ensuring safety in electrical systems

Applications

• Electrical insulation components

• Power distribution equipment and switchgear

• High-temperature industrial machinery

• Mechanical parts requiring thermal resistance and strength

• Heavy-duty electrical systems in humid or demanding environments

Technical Data Sheet
