NEMA CE PFCC43 3723 Phenolic Cotton Cloth Rod Electrical Insulation Material

Description

Phenolic Cotton Rod is made of cotton fabric impregnated with phenolic resin, then heated intoprepreg and rolling into the rod shape, finally put into the different diameters molds, under hightemperature and pressure to cure into the rigid laminated rods. Usually for mechanical andelectrical applications.

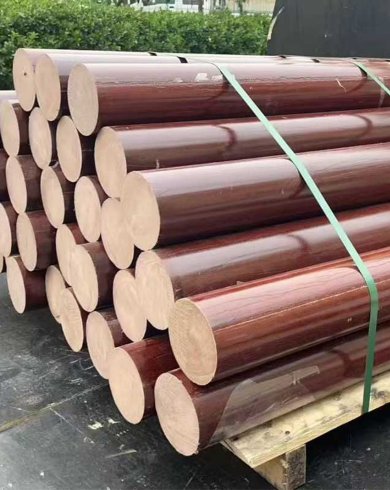

PFCC43 Laminated Rods are high-performance insulation components designed for use in power transformers. Constructed from CE laminated materials, these rods provide reliable electrical insulation, mechanical strength, and structural support. They effectively isolate conductors at different potentials, ensuring the transformer's insulation performance and overall electrical safety. Additionally, PFCC43 rods can withstand mechanical pressures from windings and cores, maintaining the stability and integrity of the transformer's internal structure.

GOST Standard: 3721, 3722, 3723, 3724, 3725

IEC Standard: PFCC41, PFCC42, PFCC43

NEMA Standard: C, CE, L, LE

3722, 3723, 3724, 3725: Similar to NEMA Grade C, CE, L and LE Respectively, usually for mechanical & electrical applications. 3725 allows fine processing

PFCC41, PFCC42 and PFCC43: IEC Grade, PFCC41(fine cloth), PFCC42(coarse cloth) and PFCC43(extra coarse cloth)

Features

• Excellent electrical insulation, ensuring reliable separation between conductors at different potentials.

• High mechanical strength, capable of withstanding the pressure from windings and cores.

• Stable dimensional performance, maintaining structure under mechanical and thermal stress.

• Durable and long-lasting, ensuring consistent transformer performance over time.

• Resistant to moisture and environmental factors commonly encountered in transformer operations.

Applications

• Insulation supports in power transformers.

• Barriers for isolating conductors at different voltage potentials.

• Structural components inside windings and cores to maintain transformer stability.

• Critical electrical insulation components in high-voltage and industrial transformers.
