Brand: YILONG
Materials: Phenolic Resin + Linen Cloth
Density: 1.35g/cm³
Color: Reddish Brown
Thickness: 0.5-200mm
Size: 1020x1220mm, 1020x2040mm
Temperature Index: 120
Thermal Class: E
Packaging: Pallet, Wooden Box
Description

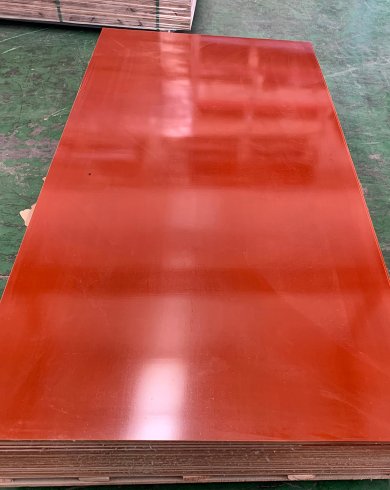

PFCC305, Phenolic Cotton or Linen. Very Fine Weave. It is very fine weave cotton phenolic laminate with good electrical and mechanical properties. Can be machined to a very fine finish. Suitable for instrument gears and other intricate machined components. The closest NEMA equivalent to this specification is NEMA L.
Features
High mechanical strength and toughness
Good electrical insulation properties
Excellent wear and impact resistance
Smooth, defect-free surface
Low friction and good dimensional stability
Excellent machinability for precision parts
Suitable for harsh environments, including high dust and abrasion
Resistant to weathering and mild chemical exposure
Applications
Low-voltage electrical insulation components
Motor slot wedges, coil formers and bobbins
Precision machined parts
Gears, cams and cam followers
Bolts, screws and insulating bushes
Jigs, fixtures and welding jigs
Rollers, conveyor wheels, pulleys and sheaves
Ball race cages and rolling mill bearings
Slideways and wear-resistant guide components
Compressor rotor blades and scraper blades
Piston rings and punched components
Insulating handles and pipeline insulation parts
Cryogenic and low-temperature components
Technical Data Sheet
| Textolite Phenolic Cotton Cloth Sheet (PFCC201/PFCC202/PFCC203/PFCC204/PFCC305) | |||||||||
| No. | Properties | Thick | Unit | Index | |||||
| 1 | Standards | / | / | PFCC201 3025 HGW2082 C850.1 (C) | PFCC202 3027 HGW2082.5 C850.2 (CE) | PFCC203 3026 HGW2083 C850.3 (L) | PFCC204 3028 HGW2083.5 C850.4 (LE) | PFCC305 | |
| 2 | Density | All | g/cm3 | 1.30～1.45 | 1.30～1.45 | 1.30～1.45 | 1.30～1.45 | 1.30～1.45 | |
| 3 | Flexural Strength ⊥ | ≥1.6 | MPa | ≥100 | ≥90 | ≥110 | ≥100 | ≥125 | |
| 4 | Apparent Flexural Modulus | ≥1.6 | MPa | ≥7000 | ≥7000 | ≥7000 | ≥7000 | ≥7000 | |
| 5 | Impact strength ∥simply supported beam, thick≥5mm | ≥5.0 | kJ/m2 | ≥8.8 | ≥7.8 | ≥7.0 | ≥6.0 | ≥6.0 | |
| 6 | Impact strength ∥cantilever beam, thick≥5mm | ≥5.0 | kJ/m2 | ≥5.4 | ≥5.9 | ≥5.9 | ≥4.9 | ≥4.9 | |
| 7 | Adhesion Strength | ≥5.0 | N | ≥3600 | ≥3600 | ≥3200 | ≥3200 | ≥3200 | |
| 8 | Shear Strength ∥ | ≥5.0 | MPa | ≥25 | ≥25 | ≥20 | ≥20 | ≥20 | |
| 9 | Tensile Strength | ≥1.6 | MPa | ≥80 | ≥85 | ≥60 | ≥80 | ≥80 | |
| 10 | Insulation resistance after water immersion | All | Ω | — | ≥5x10^7 | ≥5x10^7 | ≥5x10^7 | — | |
| 11 | AC dielectric constant (50/60 Hz) | ≤3.0 | — | — | — | ≤5.5 | ≤5.5 | ≤5.5 | |
| 12 | Comparative Tracking Index (CTI) | ≥3.0 | — | ≥100 | ≥100 | ≥100 | ≥100 | ≥100 | |
| 13 | Dielectric strength, measured in transformer oil at 90 ± 2 °C ≥ | ∥ | ＞3.0 | kV | — | ≥20 | — | ≥20 | — |
| 14 | ⊥ | ≤3.0 | kV/mm | Refer to CHART 1 | |||||
| 15 | Water absorption ≤ | All | mg | Refer to CHART 2 | |||||
| 16 | Thermal Index (TI) ≥ | ≥3.0 | ℃ | 120 | 120 | 120 | 120 | 120 | |
| Dielectric strength - CHART 1 | |||||||||
| Test Thickness (mm) | Dielectric strength（kV/mm） | Test Thickness (mm) | Dielectric strength（kV/mm） | ||||||
| 3025 | 3026 | 3027 | 3028 | 3025 | 3026 | 3027 | 3028 | ||
| 0.5 | - | ≥0.98 | - | ≥8.1 | 1.6 | ≥0.72 | ≥0.72 | ≥3.8 | ≥5.1 |
| 0.6 | - | ≥0.95 | - | ≥7.7 | 1.8 | ≥0.69 | ≥0.69 | ≥3.6 | ≥4.8 |
| 0.7 | - | ≥0.92 | - | ≥7.3 | 2 | ≥0.65 | ≥0.65 | ≥3.4 | ≥4.6 |
| 0.8 | ≥0.89 | ≥0.89 | ≥5.6 | ≥7.0 | 2.2 | ≥0.61 | ≥0.61 | ≥3.3 | ≥4.4 |
| 0.9 | ≥0.84 | ≥0.84 | ≥5.3 | ≥6.6 | 2.4 | ≥0.58 | ≥0.58 | ≥3.2 | ≥4.2 |
| 1 | ≥0.82 | ≥0.82 | ≥5.1 | ≥6.3 | 2.6 | ≥0.56 | ≥0.56 | ≥3.1 | ≥4.1 |
| 1.2 | ≥0.80 | ≥0.80 | ≥4.6 | ≥5.8 | 2.8 | ≥0.53 | ≥0.53 | ≥3.0 | ≥4.1 |
| 1.4 | ≥0.76 | ≥0.76 | ≥4.2 | ≥5.4 | 3 | ≥0.50 | ≥0.50 | ≥3.0 | ≥4.0 |
| Water Absorption - CHART 2 | |||||||||
| Test Thickness (mm) | Water Absorption（mg） | Test Thickness (mm) | Water Absorption（mg） | ||||||
| 3025 | 3026 | 3027 | 3028 | 3025 | 3026 | 3027 | 3028 | ||
| 0.5 | - | ≤190 | - | ≤127 | 5 | ≤275 | ≤275 | ≤175 | ≤175 |
| 0.6 | - | ≤194 | - | ≤129 | 6 | ≤284 | ≤284 | ≤182 | ≤182 |
| 0.8 | ≤201 | ≤201 | ≤133 | ≤133 | 8 | ≤301 | ≤301 | ≤195 | ≤195 |
| 1 | ≤206 | ≤206 | ≤136 | ≤136 | 10 | ≤319 | ≤319 | ≤209 | ≤209 |
| 1.2 | ≤211 | ≤211 | ≤139 | ≤139 | 12 | ≤336 | ≤336 | ≤223 | ≤223 |
| 1.6 | ≤220 | ≤220 | ≤145 | ≤145 | 14 | ≤354 | ≤354 | ≤236 | ≤236 |
| 2 | ≤229 | ≤229 | ≤151 | ≤151 | 16 | ≤371 | ≤371 | ≤250 | ≤250 |
| 2.5 | ≤239 | ≤239 | ≤157 | ≤157 | 20 | ≤406 | ≤406 | ≤277 | ≤277 |
| 3 | ≤249 | ≤249 | ≤162 | ≤162 | 25 | ≤450 | ≤450 | ≤311 | ≤311 |
| 4 | ≤262 | ≤262 | ≤169 | ≤169 | 22.5 | ≤540 | ≤540 | ≤373 | ≤373 |
