Brand: YILONG
Materials: insulating impregnated paper + phenolic resin
Density: 1.35g/cm³
Color: Orange, Black
Thickness: 0.5-100mm
Size: 1020x1220mm, 1020x2040mm, 1220x2440mm
Temperature Index: 120
Thermal Class: E
Packaging: Pallet, Wooden Box
Description

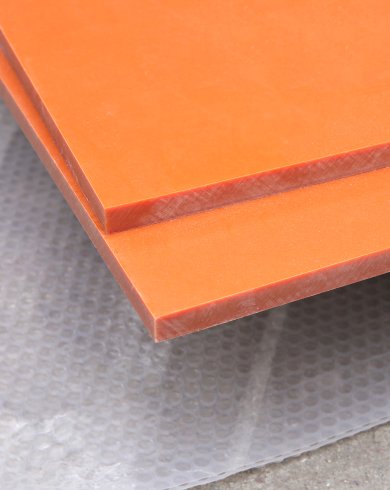

PFCP308 sheets are similar to PFCP206 in all other properties but feature low flammability. Made from phenolic resin–impregnated insulating paper by hot pressing, this grade provides mechanical and electrical performance suitable for demanding applications. PFCP308 is ideal for insulating structural parts of electrical and electronic products requiring flame-retardant properties, offering flame resistance better than NEMA FR-1 but lower than FR-2.
Features
PFCP201: Mechanical grade; better mechanical properties than other PFCP types; lower electrical performance under normal humidity; suitable for hot punching. NEMA: X
PFCP202: Power-frequency voltage grade; high electrical strength in oil; good electrical strength in air under normal humidity. NEMA: XX; Industry standard: 3020
PFCP203: Mechanical and electrical grade; good electrical performance under normal humidity; suitable for hot punching. NEMA: XXP; Industry standard: 3021
PFCP204: Electrical and electronic grade; stable electrical performance under humidity; suitable for cold punching or hot punching. NEMA: XXX
PFCP205: Similar to PFCP204; low flammability. NEMA: FR-2
PFCP206: Mechanical and electrical grade; good electrical performance under humidity, including after water immersion (insulation resistance); suitable for hot punching. NEMA: XXXP
PFCP207: Similar to PFCP201; improved punching performance at low temperature; mechanical grade with low electrical properties; commonly known as cold-punching grade. NEMA: XPC
PFCP308: Similar to PFCP206; low flammability; flame resistance better than NEMA FR-1 but lower than FR-2.
Applications
PFCP201: Mechanical components and structural parts; hot-punched mechanical insulation parts.
PFCP202: Power-frequency electrical insulation parts; oil-immersed and air insulation components.
PFCP203: General-purpose mechanical and electrical insulation parts; hot-punched components.
PFCP204: Electrical and electronic insulation parts; precision punched components under humid conditions.
PFCP205: Flame-retardant electrical and electronic insulation components.
PFCP206: Mechanical and electrical insulation parts used in humid or water-exposed environments.
PFCP207: Cold-punched mechanical components; low-temperature punching applications.
PFCP308: Flame-retardant mechanical and electrical insulation parts with moderate fire resistance.
Technical Data Sheet
| Phenolic Paper Sheets / Bakelite Sheet | ||||||||||
| No. | Parameter | Unit | PFCP201 | PFCP202 | PFCP203 | PFCP204 | PFCP205 | PFCP206 | PFCP207 | PFCP308 |
| HP2061 | HP2061.5 | HP2061.6 | Hp2063 | Hp2062.9 | HP2062.8 | XPC | - | |||
| X | XX | XXP | XXXPC | FR-2 | XXXP | XPC | FR-1 | |||
| 2 | Density | g/cm³ | 1.30–1.45 | 1.30–1.45 | 1.30–1.45 | 1.30–1.45 | 1.30–1.45 | 1.30–1.45 | 1.30–1.45 | 1.30–1.45 |
| 3 | Flexural Strength ≥ | MPa | 135 | 120 | 120 | 75 | 75 | 85 | 80 | 85 |
| 4 | Apparent Flexural Modulus ≥ | MPa | 7000 | 7000 | 7000 | 7000 | 7000 | 7000 | 7000 | 7000 |
| 5 | Compressive strength perpendicular≥ | MPa | 300 | 300 | 250 | 250 | 250 | 250 | 250 | 250 |
| 6 | Shear strength parallel | MPa | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| 7 | Tensile Strength ≥ | MPa | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| 8 | Bonding Strength ≥ | N | 3600 | 3600 | 3200 | 3200 | 3200 | 3200 | 3200 | 3200 |
| 9 | Dielectric Constant, Thickness ≤3.0mm | |||||||||
| @ 48-62Hz | — | — | 5.5 | — | — | — | — | — | — | |
| @ 1MHz | — | — | — | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | |
| 10 | Dielectric Loss, Thickness ≤3.0mm | |||||||||
| @ 48-62Hz | — | — | 0.05 | — | — | — | — | — | — | |
| @ 1MHz | — | — | — | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
| 11 | Breakdown Voltage, In-plane ≥ (in oil, 90±2℃) | kV | — | 35 | 15 | 25 | 20 | 25 | — | 25 |
| 12 | Electrical Strength, Through-thickness ≥ (in oil, 90±2℃) | |||||||||
| thickness 0.5mm | kV/mm | — | 18.2 | 7.6 | 14.7 | 14.7 | 16 | — | 16 | |
| thickness 1.0mm | — | 15.8 | 7.0 | 12.1 | 12.1 | 12.3 | — | 12.3 | ||
| thickness 2.0mm | — | 13.6 | 6.2 | 9.3 | 9.3 | 9.1 | — | 9.1 | ||
| thickness 3.0mm | — | 13 | 5.0 | 8.4 | 8.4 | 7.7 | — | 7.7 | ||
| 13 | Insulation Resistance after Water Immersion ≥ | Ω | — | — | 5.0×107 | 5.0×107 | 1.0×109 | 1.0×109 | — | 1.0×109 |
| 14 | Water Absorption ≤ | |||||||||
| thickness 0.5mm | mg | 417 | 167 | 162 | 45 | 45 | 63 | 417 | 63 | |
| thickness 1.0mm | 450 | 180 | 170 | 48 | 48 | 69 | 450 | 69 | ||
| thickness 2.0mm | 500 | 220 | 190 | 56 | 56 | 80 | 500 | 80 | ||
| thickness 5.0mm | 650 | 342 | 235 | 77 | 77 | 110 | 650 | 110 | ||
| 15 | Flammability | — | — | — | — | — | FV1 | — | — | FV1 |
| 16 | Thermal Index | ℃ | 120 | 120 | 120 | 120 | 120 | 120 | ||
| 17 | Material | — | Phenolic Resin + Impregnated Paper | Phenolic Resin + Impregnated Paper | Phenolic Resin + Impregnated Paper | Phenolic Resin + Impregnated Paper | Phenolic Resin + Impregnated Paper | Tung Oil Modified Phenolic Resin + Bleached Wood Pulp Paper | Tung Oil Modified Phenolic Resin + Bleached Wood Pulp Paper | Phenolic Resin + Impregnated Paper |
