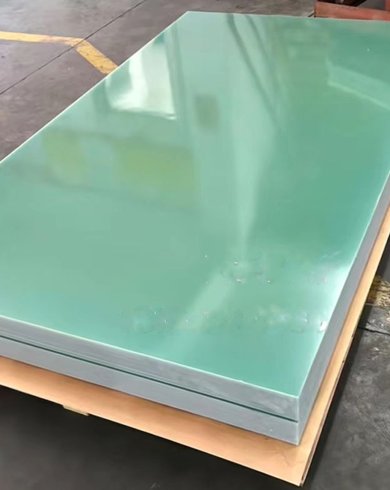

G10 (EPGC201) Epoxy Fiberglass Sheet for Electrical Insulation and Industrial Use

Description

G10 is a NEMA-grade 7628 fiberglass reinforced epoxy laminate. It features high mechanical strength, excellent dielectric performance, and good heat and moisture resistance. The material also has strong corrosion and wear resistance, with good machinability for cutting, drilling, and milling.

G10 sheets are widely used in electrical insulation, motor slot wedges, turbo-alternator components, and various electronic and industrial parts.

Features

High strength and rigidity

Excellent electrical insulation properties

Chemical resistance, moisture resistance, and heat resistance

Dimensional stability

Fire resistance

1. Electronics & Electrical

PCB drilling pads

FPC reinforcement plates

Electronic switch insulation boards

Insulation components for electronic devices

Precision test plates

2. Power & Transformer

Transformer insulation boards

Insulation stays and support plates for electrical equipment

3. Motors & Power Generation

Motor insulation parts

Slot wedges

Key structural components in turbo-alternators

4. Mechanical & Precision Components

Precision gears and star wheel grinding (chips)

Insulating spacers and isolation plates

Grinding wheel components

5. Other Industrial Uses

Fiberglass mesh and glass fiber board substrates

Carbon film printing substrates (e.g., potentiometers)

Technical Data Sheet
